Monel 400 Sheets Monel 400 Plates Monel Alloy 400 Chequered Plates

Monel 400 Plates, Monel Alloy 400 Plates, Monel® 400 Sheets, Monel 400 Sheets and Plates in India.

Table Of Content

Enquiry Now

Monel 400 Cold Rolled Sheets, ASTM B127 Alloy 400 Plates, Monel Alloy 400 Hot Rolled Plates, Monel Alloy 400 Sheets Manufacturers in India

monel alloy 400 sheets and plates price per kg, monel 400 sheets price, monel 400 sheets suppliers, astm b127 alloy 400 plates price list in india, monel alloy 400 plates price in Mumbai, monel 400 plates cost.

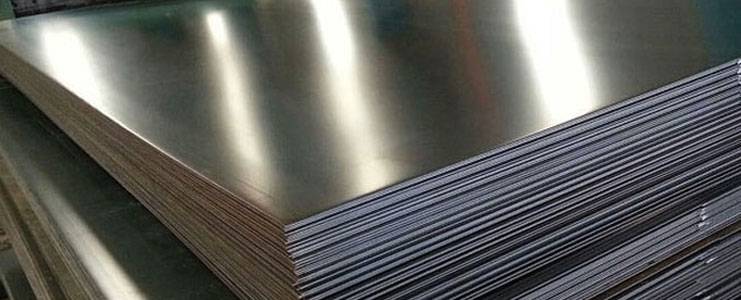

400 Monel Sheets and Plates

Monel 400 is an alloy that has numerous features and benefits which are required in industrial applications. It is a combination of Nickel and Copper. It has excellent strength and corrosion resistance properties. Monel 400 is extensively suitable for piping applications because of its anti-corrosive properties, which offer resistance to both seawaters as well as steam.

Seamac Piping Solutions Inc. is a leading manufacturer and exporter of a wide range of Monel 400 Sheet Plate. These Plates are demanded by various industries to complete multiple operations. We are fabricating the best quality Monel 400 Sheet Plate with numerous beneficial properties like high mechanical strength, good flexibility, excellent weldability, high toughness, and high corrosion resistance. These Plates provide resistance to pitting as well as crevice corrosion cracking in under extreme conditions.

Seamac Piping Solutions Inc. carries a wide range of Monel 400 sheets and plates in a variety of lengths, ODs, IDs, size and wall thicknesses to meet your project’s needs—including sheets and plates in dimension as per ASTM and weight-kg. per mtr. weight & thickness of 400 Monel sheets plates .

We are using the highest quality Monel 400 alloy to produce these Plates. This makes us able to supply the most excellent Monel 400 Sheet Plate. Our high-grade Monel 400 Sheet Plate are suitable for both acidic and alkaline environments. We have a highly qualified professional team that manufactures these Monel 400 Plates by using supreme material, latest machinery, and advanced technology.

Seamac Piping Solutions Inc. has a client base all over the globe, and hence we are following all national and international quality standards to deliver perfectly suitable Plates. Our precise Monel 400 Sheet Plate are available in different sizes, shapes, thicknesses, and materials. We ensure to offer Monel 400 Sheet Plate with higher efficiency, long service life, high dimensional accuracy, high strength, and durability. We make sure that every Plate is undergone through strict quality tests under the supervision of our experienced quality team.

Monel 400 Sheets and Plates Specifications

Specification : ASTM B127 / ASME SB127

Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc

Monel Sheet : thickness range from .008" to .0125"

Monel Plate : thickness ranges from .0125" to 5.00"

Size : 15NB to 150NB In

Tempers : Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard

Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Form: Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

ASME SB127 Monel 400 Sheets and Plates Equivalent Grades

STANDARD UNS WNR. AFNOR EN JIS BS GOST
Monel 400 N04400 2.4360 NU-30M NiCu30Fe NW 4400 NA 13 МНЖМц 28-2,5-1,5

In our highly equipped development unit, we are the latest machinery and equipment which we are using to deliver high-quality Plates. We have supreme storage and warehousing to store ready stock of Plates, which helps to complete the urgent requirements of our clients. Seamac Piping Solutions Inc. is also focusing on packaging and shipping of products to ensure safe and damage-free doorstep service within the decided time.


Monel 400 Sheets and Plates Types

Monel 400 Perforated Sheets

Alloy 400 Perforated Sheets

ASTM B127 Monel 400 Perforated Sheets

UNS N04400 Perforated Sheets

Monel 2.4360 Perforated Sheets

Monel 400 Chequered Plates

Monel® 400 Chequered Plates

ASTM B127 Alloy 400 Chequered Plates

UNS N04400 Chequered Plates

Monel 2.4360 Chequered Plates

Monel 400 Shim Sheets

Monel 400 Shim Sheets

ASTM B127 Monel 400 Shim Sheets

UNS N04400 Shim Sheets

Alloy 2.4360 Shim Sheets

Monel 400 Coils

Monel 400 Coils

ASTM B127 Alloy 400 Coils

UNS N04400 Coils

Monel 2.4360 Coils

Monel 400 Sheets Sizes in Stock:

All Sheets and Plates is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.

Monel Gauge Width and Length Weight Lbs. per Sq. Ft. Estimated Weight per Sheet
7 ga. (.1874") x 48 x 120 7.871 314.8
10 ga. (.135") x 48 x 120 5.670 226.8
11 ga. (.120") x 36 x 120 5.040 151.2
11 ga. (.120") x 48 x 96 5.040 161.3
11 ga. (.120") x 48 x 120 5.040 201.6
11 ga. (.120") x 48 x 144 5.040 241.9
11 ga. (.120") x 60 x 96 5.040 252.0
12 ga. (.105") x 36 x 120 4.410 132.3
12 ga. (.105") x 48 x 120 4.410 176.4
12 ga. (.105") x 60 x 120 4.410 220.5
14 ga. (.075") x 36 x 120 3.150 94.50
14 ga. (.075") x 48 x 120 3.150 126.0
16 ga. (.060") x 36 x 120 2.520 75.60
16 ga. (.060") x 48 x 96 2.520 80.64
16 ga. (.060") x 48 x 120 2.520 100.8
16 ga. (.060") x 60 x 120 2.520 126.0
18 ga. (.048") x 36 x 120 2.016 60.48
18 ga. (.048") x 48 x 120 2.016 80.64
20 ga. (.036") x 36 x 120 1.512 45.36
20 ga. (.036") x 48 x 120 1.512 60.48
22 ga. (.030") x 36 x 120 1.260 37.80
22 ga. (.030") x 48 x 96 1.260 40.32
22 ga. (.030") x 48 x 120 1.260 50.40
24 ga. (.024") x 36 x 120 1.008 30.24
24 ga. (.024") x 48 x 120 1.008 40.32
26 ga. (.018") x 36 x 120 .7560 22.68
26 ga. (.018") x 48 x 120 .7560 30.24
28 ga. (.015") x 36 x 120 .6300 18.90

Chemical Composition of Monel 400 Sheets and Plates

Grade Ni C Al Mn Si Fe Cu S
Monel 400 63.0 min 0.3 max 0.50 max 2.0 max 0.5 max 1.0 - 2.5 28.0 - 34.0 0.02 max

Mechanical Properties of Alloy 400 Sheets and Plates

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 35,000 , MPa – 240 Psi – 80,000 , MPa – 550 40 %
application industry

Monel 400 Sheets and Plates Application Industries

  • Chemical Industry
  • Petrochemical industry
  • Marine & Power Transmission industry
  • Power plants
  • Energy industries
  • Furniture
  • Pharmaceutical processing industry
  • Modern architecture
  • Home appliances
  • Water waste projects
  • Synthetic fiber
  • Heat exchanger
  • Fluid piping
  • Dairy and food processing
