Hastelloy C276 Sheets Hastelloy C276 Plates Hastelloy Alloy C276 Chequered Plates

Hastelloy® C276 Sheets, Hastelloy C276 Plates, Hastelloy Alloy C276 Plates, Hastelloy C276 Sheets and Plates in India.

Table Of Content

Enquiry Now

ASTM B575 Alloy C276 Plates, Hastelloy C276 Cold Rolled Sheets, Hastelloy Alloy C276 Hot Rolled Plates, ASTM B575 UNS N10276 Hastelloy C276 Sheet, Hastelloy Alloy C276 Sheets Manufacturers in India

hastelloy alloy c276 plates price in Mumbai, hastelloy c276 plates cost, astm b575 alloy c276 plates price list in india, Hastelloy Alloy C276 Hot Rolled (HR) Sheet & Plates, hastelloy alloy c276 sheets and plates price per kg, hastelloy c276 sheets suppliers, hastelloy c276 sheets price, Alloy C276 Cold Rolled Plates in Stockholder in India

C276 Hastelloy Sheets and Plates

Hastelloy C276 is a superalloy of Nickel, Molybdenum, and Chromium, which contains a small amount of Tungsten. This alloy offers excellent corrosion resistance property in various environmental conditions. Hastelloy C276 has excellent resistance to pitting, acid, crevice corrosion, and also in reducing the environment. This alloy is most widely used in many industrial applications because of its excellent qualities and features.

We, Seamac Piping Solutions Inc., are one of the leading manufacturers and suppliers of Hastelloy products. Hastelloy C276 Sheet Plate are one of the best-selling products from our inventory. we are producing excellent quality of the ASTM B575 UNS N10276 Hastelloy C276 Sheet and Hastelloy C276 Plate. With the use of the latest technology and modern machinery, we are enhancing the quality and quantity of products. This makes us able to deliver Hastelloy C276 Sheet Plate in the required amount.

It is Applied in both gas metals and shielded metallic processes. As a leading Hatelloy Sheet supplier we offer the materials in all different grades and size s. The plates are categorized under the B575 specification with a minimum yield strength of 54ksi and minimum tensile strength of 115ksi for ASTM B575 UNS N10276 Hastelloy C276 Sheet products. The products belong under the ASTM A240 specifications as well. The dimensions fall in accordance with the EN and DIN standards. The dimensions go from 0.1mm up to 100mm in thickness, 10mm up to 2500mm in width and length can be from 2m to 3m or up to the required sizes. The ASME SB 575 UNS N06022 Hastelloy C22 Sheet and sheets in other grades can come in variations of soft, hard, half hard or quarter hard, and can come in different forms such as foils, coils, flats and clad plates. Please feel free to contact us for further information.

Seamac Piping Solutions Inc. carries a wide range of hastelloy c276 sheets and plates in a variety of lengths, ODs, IDs, sizes, and wall thicknesses to meet your project’s needs including c276 plate, sheets, and in dimensions as per ASTM and weight-kg. per mtr. weight & thickness of C276 Hastelloy sheets and plates.

We are following all industrial and international quality standards while producing these Plates. This helps us to deliver perfectly suitable Plates to our clients from all over the globe. We are supplying Hastelloy C276 Sheet Plate in qualitative variety. We are producing these Plates by making effective use of good quality of alloy. Our high-grade Hastelloy C276 Sheet Plate has various useful features like high tensile strength, easy to use, ruggedly constructed, good dimensional accuracy, excellent surface finishes, and hold high temperature.

Different grades include C22, C276, B-2 and hastelloyX. Hastelloy C276 Plate contains nickel, along with 14.5% chromium and 15% molybdenum in the composition. It resists reducing, corrosive and oxidizing media. Hastelloy C22 Plate contains 12.5% molybdenum and 20% chromium. It is resistant to corrosion in stagnant or flowing seawater.

Hastelloy C276 Sheets and Plates Specifications

Specification : ASTM B575 / ASME SB575

Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc

Hastelloy Sheet : thickness range from .008" to .0125"

Hastelloy Plate : thickness ranges from .0125" to 5.00"

Size : 15NB to 150NB In

Tempers : Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard

Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Form: Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

ASME SB575 Hastelloy C276 Sheets and Plates Equivalent Grades

STANDARD UNS WNR. EN JIS OR GOST
Hastelloy C276 N10276 2.4819 NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ

With all beneficial features, our high-grade Plates are performing well in all industrial operations. At reasonable rates, we are providing the most precise Hastelloy C276 Sheet Plate with superior finishing. We are to offer convenient doorstep service to our esteem clients and also to welcome new clients.


Hastelloy C276 Sheets and Plates Types

Hastelloy C276 Perforated Sheets

Alloy C276 Perforated Sheets

ASTM B575 Hastelloy C276 Perforated Sheets

UNS N10276 Perforated Sheets

Hastelloy 2.4819 Perforated Sheets

Hastelloy C276 Chequered Plates

Hastelloy® C276 Chequered Plates

ASTM B575 Alloy C276 Chequered Plates

UNS N10276 Chequered Plates

Hastelloy 2.4819 Chequered Plates

Hastelloy C276 Shim Sheets

Hastelloy C276 Shim Sheets

ASTM B575 Hastelloy C276 Shim Sheets

UNS N10276 Shim Sheets

Alloy 2.4819 Shim Sheets

Hastelloy C276 Coils

Hastelloy C276 Coils

ASTM B575 Alloy C276 Coils

UNS N10276 Coils

Hastelloy 2.4819 Coils

Density Chart of Hastelloy C276 Slatting Coil

UNS N10276 Hastelloy C276 Plate density
lb/in3 : 0.321
g/cm3 :8.89

Melting Range of Hastelloy C276 UNS N06022 Strips

ASTM B575 Alloy C276 Plate melting range
°F : 2415-2500
°C: 1325-1370

Chemical Composition of Hastelloy C276 Sheets and Plates

Grade Ni C Mo Mn Si Fe P S Co Cr W V
Hastelloy C276 Balance 0.01 max 15–17 1.0 max 0.08 max 4–7 0.04 max 0.03 max 2.5 max 14.5–16.5 3–4.5 0.35 max

Mechanical Properties of Alloy C276 Sheets and Plates

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %

Hastelloy C276 Sheets Sizes in Stock:

All Sheets and Plates is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.

Hastelloy Gauge Width and Length Weight Lbs. per Sq. Ft. Estimated Weight per Sheet
7 ga. (.1874") x 48 x 120 7.871 314.8
10 ga. (.135") x 48 x 120 5.670 226.8
11 ga. (.120") x 36 x 120 5.040 151.2
11 ga. (.120") x 48 x 96 5.040 161.3
11 ga. (.120") x 48 x 120 5.040 201.6
11 ga. (.120") x 48 x 144 5.040 241.9
11 ga. (.120") x 60 x 96 5.040 252.0
12 ga. (.105") x 36 x 120 4.410 132.3
12 ga. (.105") x 48 x 120 4.410 176.4
12 ga. (.105") x 60 x 120 4.410 220.5
14 ga. (.075") x 36 x 120 3.150 94.50
14 ga. (.075") x 48 x 120 3.150 126.0
16 ga. (.060") x 36 x 120 2.520 75.60
16 ga. (.060") x 48 x 96 2.520 80.64
16 ga. (.060") x 48 x 120 2.520 100.8
16 ga. (.060") x 60 x 120 2.520 126.0
18 ga. (.048") x 36 x 120 2.016 60.48
18 ga. (.048") x 48 x 120 2.016 80.64
20 ga. (.036") x 36 x 120 1.512 45.36
20 ga. (.036") x 48 x 120 1.512 60.48
22 ga. (.030") x 36 x 120 1.260 37.80
22 ga. (.030") x 48 x 96 1.260 40.32
22 ga. (.030") x 48 x 120 1.260 50.40
24 ga. (.024") x 36 x 120 1.008 30.24
24 ga. (.024") x 48 x 120 1.008 40.32
26 ga. (.018") x 36 x 120 .7560 22.68
26 ga. (.018") x 48 x 120 .7560 30.24
28 ga. (.015") x 36 x 120 .6300 18.90

Hatelloy C22 Strip supplier Dimensions

ASTM B575 Alloy C276 Plate Imperial Dimensions

Plate Surface finish Gauge (in) Width (max in)
2B – Cold rolled, heat treated, pickled, skin passed Plate 10–24 72*
2D – Cold rolled, heat treated, pickled plate 12–24 60
BA Mexinox only 18–28 48
Polished plate (not brushed) 11–24 60
Temper rolled plate Mexinox only 13–29 48

Hastelloy C276 Sheet Thickness

Cold rolled Hastelloy C276 ASTM B575 thin Plates 0.2-4mm
Hot rolled ASTM B575 UNS N10276 thick Plates 20-60mm
Hot rolled ASTM B575 C276 Alloy medium Plates 4-20mm
Hot rolled Alloy C276 extra thick Plates 60-115mm

Hastelloy Alloy C276 Plate Size Chart

alloy C276 plate size (inches) 2.4819 Hastelloy clad plate size (milimeter)
0.134 3.4
0.375 9.53
0.6 15.9
0.25 6.35
0.875 22.2
1 25.4
0.125 3.18
0.156 3.96
0.75 19.1
3 76.2
1.125 28.6
1.5 38.1
0.187 4.75
1.25 31.8
2.5 63.5
1.75 44.5
2 50.8
0.5 12.7

ASTM B575 C276 Alloy Plate Metric Dimensions

Plate Surface finish Thickness (mm) Width (max mm)
2B – Cold rolled, heat treated, pickled, skin passed plate 0.25–8.0 2032
2D – Cold rolled, heat treated, pickled plate 0.4–6.35 1524
2E – Cold rolled, heat treated, mechanically descaled plate 0.4–8.0 2032
2R – Cold rolled, bright annealed plate 0.25–3.5 1524
2H – Work hardened plate 0.4–6.35 1524
Polished, brushed plate 0.5–4.0 1524


Testings (Destructive, Non Destructive):

application industry

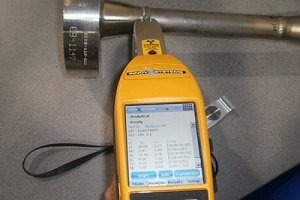

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test

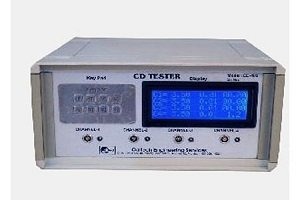

  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
application industry
application industry

  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)

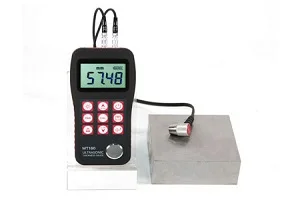

  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

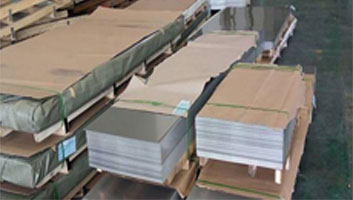

Packing

At Seamac Piping Solutions Inc., we ensure the best quality of packing because it plays an important role, especially in the case of international shipments in which consignments pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates




application industry

Hastelloy C276 Sheets and Plates Application Industries

  • Chemical Industry
  • Petrochemical industry
  • Marine & Power Transmission industry
  • Power plants
  • Energy industries
  • Furniture
  • Pharmaceutical processing industry
  • Modern architecture
  • Home appliances
  • Water waste projects
  • Synthetic fiber
  • Heat exchanger
  • Fluid piping
  • Dairy and food processing
